3.7V LITHIUM BATTERY CHARGER
USING TP4056 MODULE.
🧾 Overview:
The Type-C USB 5V 1A 18650 TP4056 Lithium Battery Charger Module with Protection Charging Board offers a reliable and compact solution for safely charging 18650 lithium batteries. It supports 5V input via a Type-C USB connector and includes built-in protections against overcharge, over-discharge, and over-current. The module supports charging currents of up to 1A and has LED indicator lights for easy monitoring of charging status. This module is perfect for various DIY projects, ensuring battery longevity and safety.
⚙️ Required Components:
3.7V Battery Li-ion.
TP4056 BATTERY CHARGER.
- Charger with Cable.

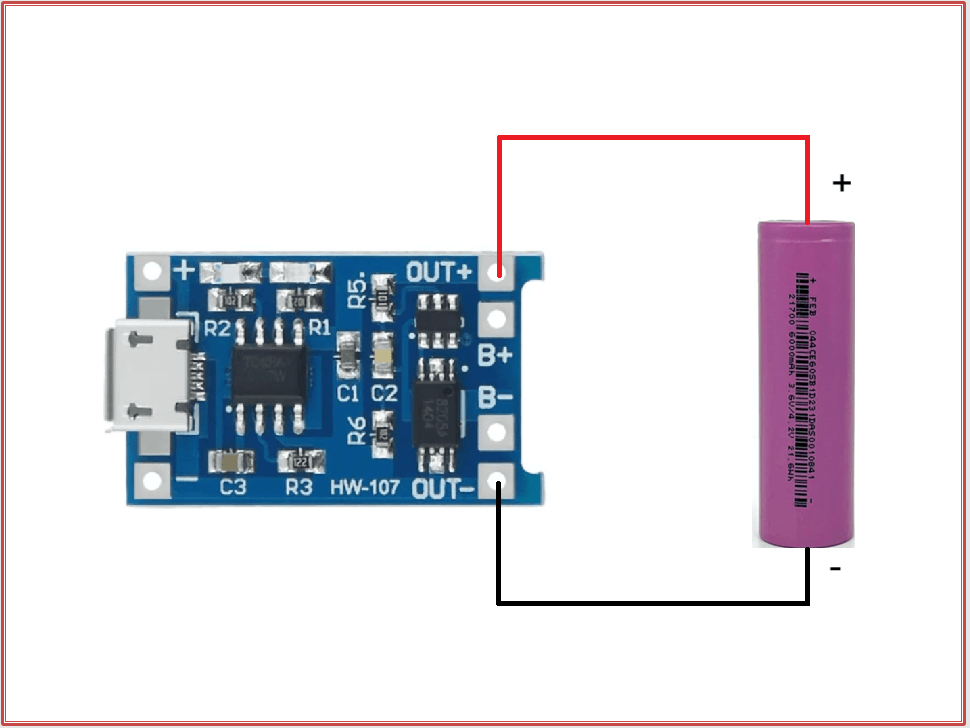

🔌 Circuit Diagram:
⚙️ Specifications:
- Input Voltage: 4.35V – 6V (Recommended 5V)
- Charging Cut-off Voltage: 4.2V ± 1%
- Maximum Output Current: 1000mA (1A)
- Overcharge Protection Voltage: 4.28V
- Discharge Protection Voltage: 3.2V
- Over-current Protection: 3A maximum
- Board Size: 2.5 x 1.65 cm
- Indicator Lights: Red (Charging), Green (Fully Charged)
