In this Blog we going to Interface IR Sensor Module with Arduino Micro-controller..

An infrared sensor is an electronic device, that emits in order to sense some aspects of the surroundings.

An IR sensor can measure the heat of an object as well as detects the motion.That monitor signal converted  to digital or analog   signal  send to the microcontroller.

Example:

We are going to Detect the Obstacle from IR Module on the serial monitor of Arduino.

Download this library from here

For information about how to add a custom library to the Arduino IDE and use examples from it, refer Adding Library To Arduino IDE in the Basics section.

Here, we have created a simplified sketch using the functions and header file provided by the Author of this library.

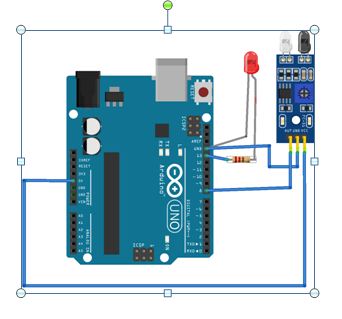

CONNECTION DIAGRAM:

CODING:


int buzzer = 13;

int led =12;

int sensor = 3;

void setup()

{

  pinMode(3,INPUT);

  pinMode(13,OUTPUT);

 pinMode(12,OUTPUT);

  Serial.begin(9600);

}

void loop()

if(digitalRead(3)==HIGH)

  {

    digitalWrite(13,HIGH);

    digitalWrite(12,HIGH);

    Serial.println(“buzzer ON”);

}

  else

  {

    digitalWrite(13,LOW);

    digitalWrite(12,LOW);

Serial.println(“buzzer OFF”);

  }

  delay(1000);

}
