WIND MILL OPERATED BATTERY CHARGING CONVERTER

ABSTRACT:

                 One type of wind-powered battery charging will be explored in this paper. It consists of a wind turbine driving a permanent magnet alternator and operates at variable speed. The alternator is connected to a battery bank via rectifier. The characteristic of the system depends on the wind turbine, the alternator, and the system configuration. If the electrical load does not match the wind turbine, the performance of the system will be degraded. By matching the electrical load to the wind turbine, the system can be improved significantly.

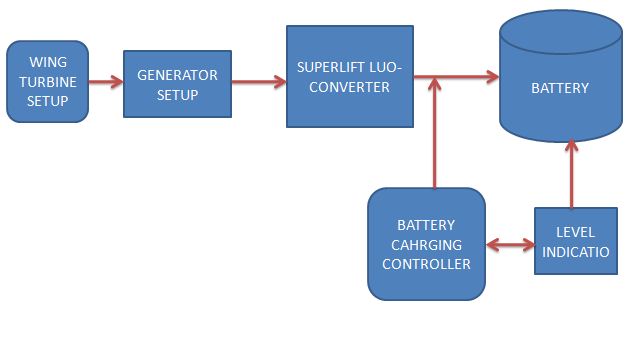

BLOCK DIAGRAM:

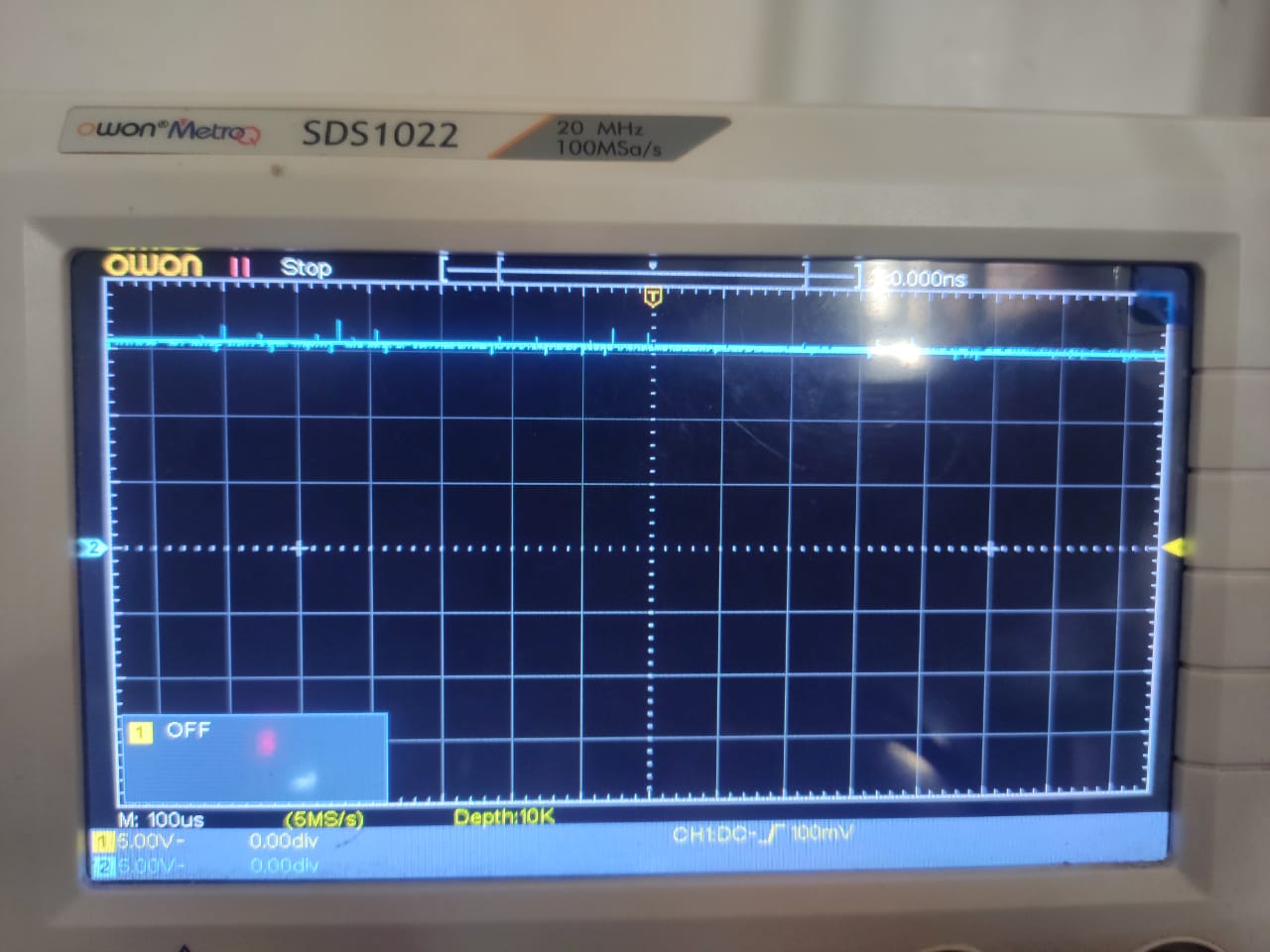

WAVEFROMS:

PROPOSED TECHNIQUE:

  •        Having Super Lift-Luo converter is bigger advantage in our project to sustain a steady state DC Supply for the battery charging.
  •       Controller Technique is proposed to analyze the life span of battery.

ADVANTAGES:

•Reduces power fluctuation.

•Increase the Efficiency.

•Performed to analyze the life period of battery.

•Improves quality of the grid.
