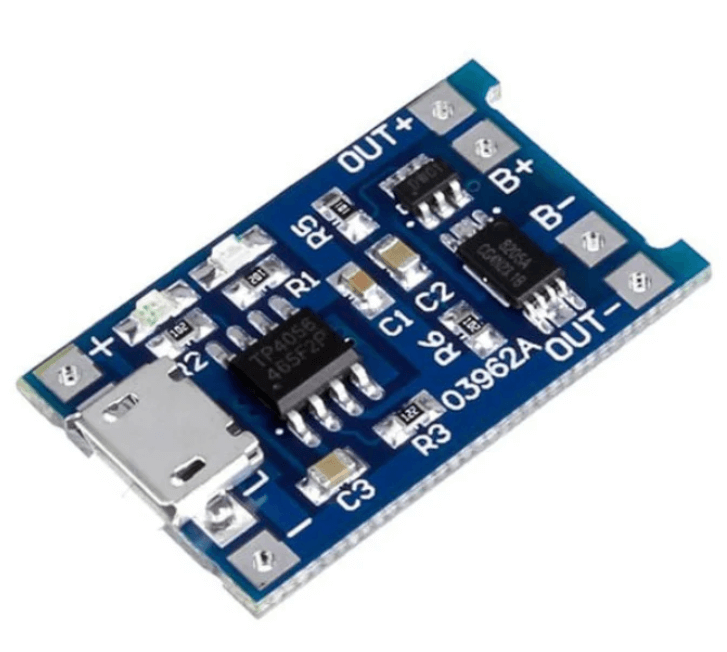

TP4056 1A Li-Ion Battery USB Charging

SHORT DESCRIPTION:

  1. Dimension: 25 x 19 x 10 (LxWxH)mm.
  2. Input interface: micro USB.
  3. Current Protection: Yes
  4. Charging mode: Linear charging.
  5. Current: 1A adjustable.
  6. Charge precision: 1.5%.
  7. Input voltage: 4.5V-5.5V.
  8. Full charge voltage: 4.2V.

Description



FEATURES:This TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection is a tiny module, perfect for charging single cell 3.7V 1 Ah or higher lithium-ion (Li-Ion) cells such as 16550s that don’t have their own protection circuit. Based on the TP4056 charger IC and DW01 battery protection IC this module will offer 1A charge current then cut off when finished.
